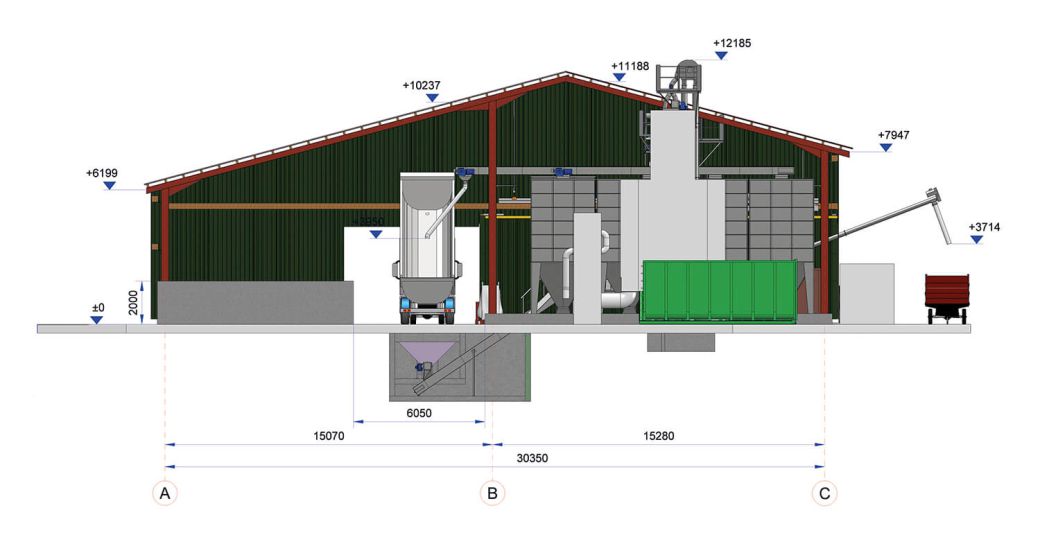

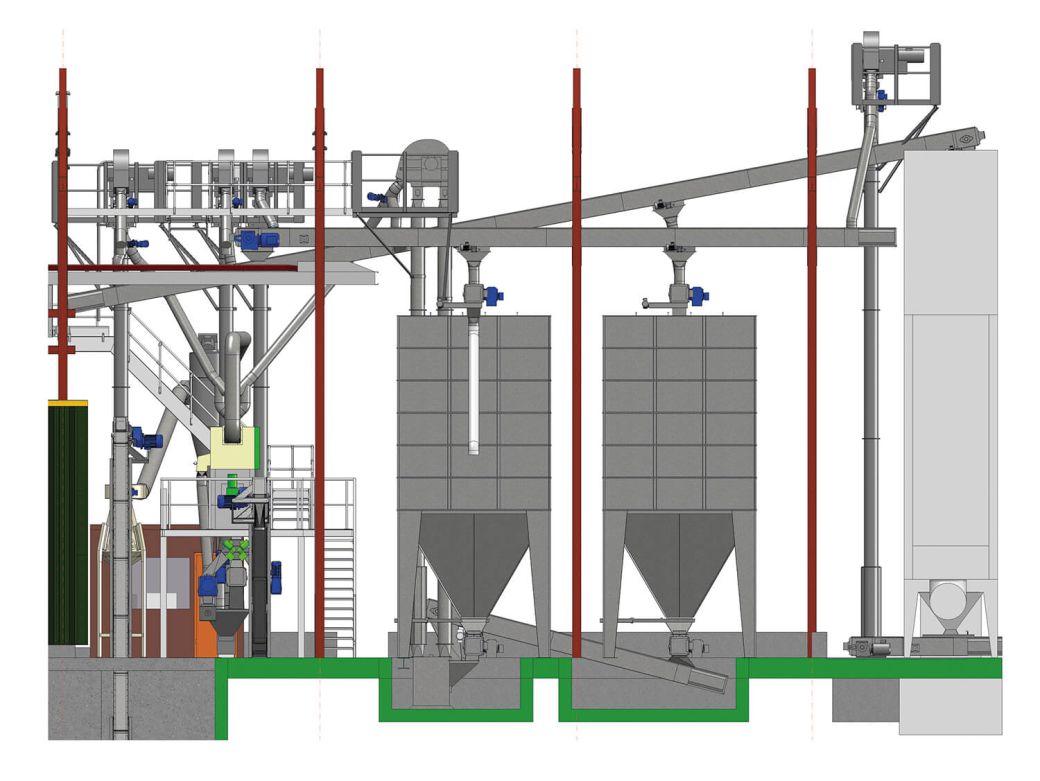

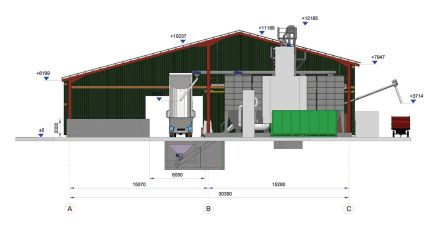

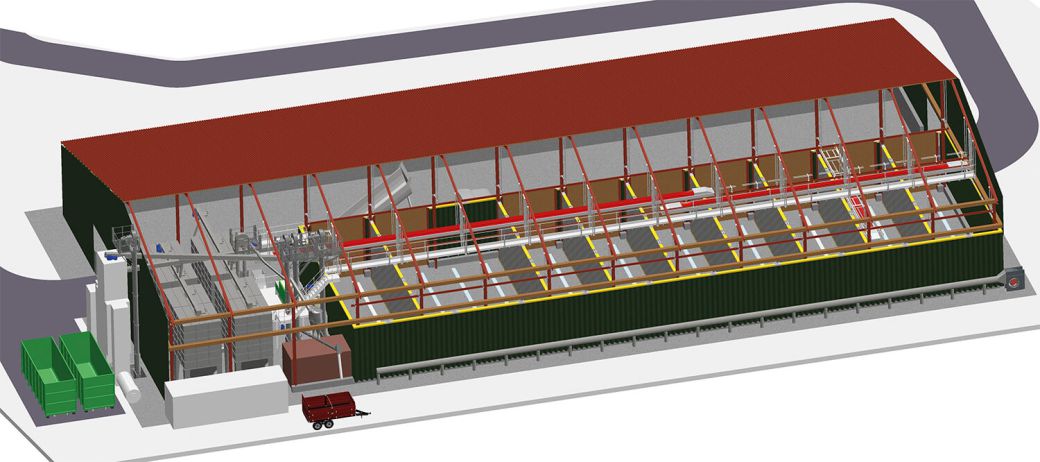

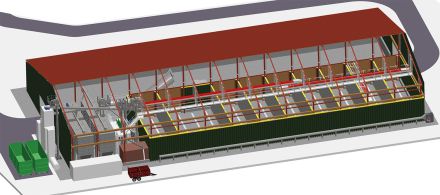

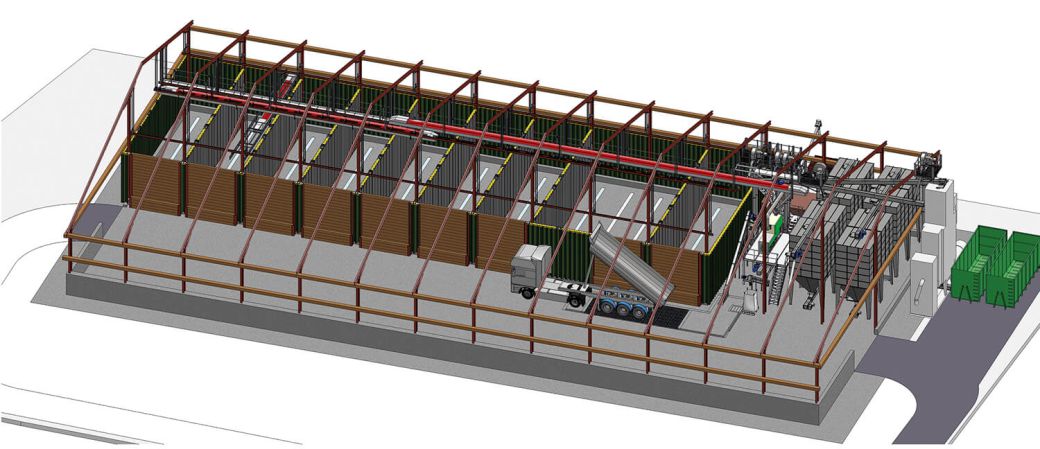

Grain cleaning and storage hall
- Customer
- LM Getreidetechnik GmbH
- Location
- Brandenburg, Germany
- Year of construction
- 2023
- Use of HiCAD
- A simpler and faster design, especially for sheet metal modules. Changes to the 3D model were automatically updated in all associated 2D drawings, drastically reducing the effort required for manual adjustments.
- Challenges
- Efficiently and precisely creating machine designs, which was time-consuming and complicated with 2D CAD software, especially with manual changes and the assignment of dependencies. Additionally, sheet metal modules and steel construction sketches were difficult to represent, and the lack of structured data management made it challenging to organize and track design data.
