Discontinuation of CADENAS PARTdataManager
As of HiCAD 2022 SP2, the CADENAS PARTdataManager will no longer be supported. Thus, the functions Insert main part, PARTsolutions (CADENAS program) and Import PARTsolutions part will no longer be available from SP2 onwards.
Update drawing
- If you have manually created or arranged dimensions or annotations, then as of SP2, you can specify that these dimensions/annotations will be retained when the drawing is updated. The contents will - if necessary - always be updated.
- Another new feature of the Update derived drawing function is the Update only BOM and title block checkbox. If this checkbox is active, only the BOM and the title block will be updated. All other changes such as scale, dimensions, designations or new sectional views will not be executed. However, changes to the geometry will be applied.

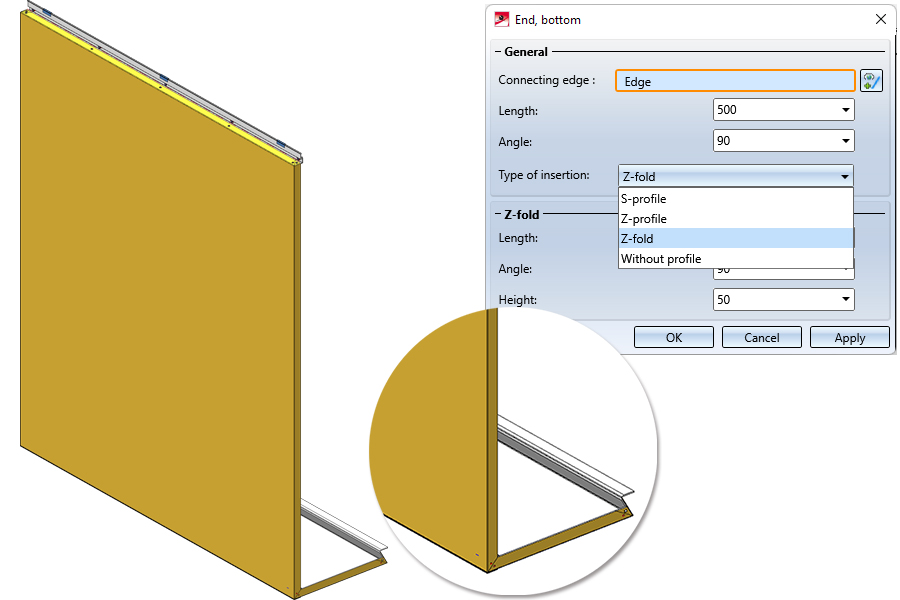

Workshop drawing - Sheet metal part as assembly main part
Previously, the drawing derivation did not support the automatic generation of workshop drawings for assemblies if the assembly main part was a sheet metal part. As of SP2, this is now possible - but only if the assembly main part is a cassette-shaped or profile-shaped sheet metal part. The procedure for these assemblies is thus analogous to assemblies in Steel Engineering, which have a profile as the assembly main part.
Itemisation - Sorting by article attributes

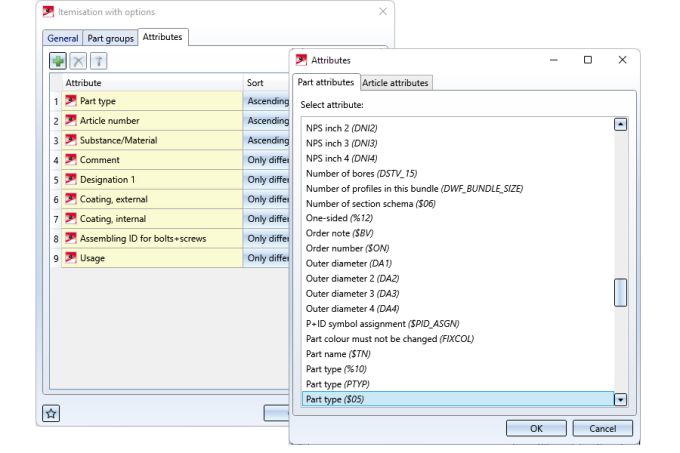

On the Attributes tab of the Itemisation with options function, you specify which attributes are to be taken into account during identical part search and itemisation. As of SP2, a distinction is now made between HiCAD Part attributes and HELiOS Article attributes, whereby the individually indicated HELiOS article attributes are used exclusively for sorting. The criterion for the differentiation is always the article master itself (usually the article number + index).
User-defined bolts+screws SFS SFS Intec TDBL-T-10,6X23
The catalogue has been extended with screws of type SFS Intec TDBL-T-10,6X23.
